AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making

Name: AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making
Brand: CHENXIN
Price: 1 USD

Wholesale AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making from china suppliers

Brand Name : CHENXIN

Model Number : CX-F100

Certification : ISO90001

Place of Origin : CHINA

MOQ : 2/Set

Price : Fob Shenzhen

Payment Terms : T/T

Supply Ability : 500 sets per month

Delivery Time : 5-8 working days

Packaging Details : boxes

stroke : 100mm

External Stripping length : 8-100mm

Voltage : AC 220v 50/60hz

Air pressure : 0.4-0.8Mpa

Weight : 45kg

Dimension : L 400mm* W220mm* H550mm

Internal cores stripping length : 2-12mm

Contact Now

Semi-Auto Wire Cable External Jacket Cores Pneumatic Stripping Machine For Power Cord Making

Features:

1 The oblique back design is ergonomic.

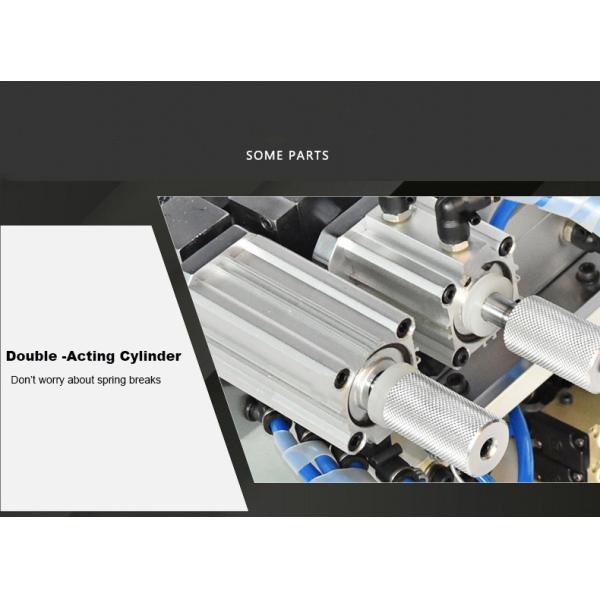

2 Double-acting cylinder, no spring break.

3 Exquisite knife molds, large and small machine types, and knife and molds are universal.

4 Unique sliding seats, light and agile, easy to work.

5 Adjustable structure, adjusted according to the thickness of the wire.

6 Adaptable wire: AC, DC power cord, computer wire, electronic wire, multi-core wire, special wire.

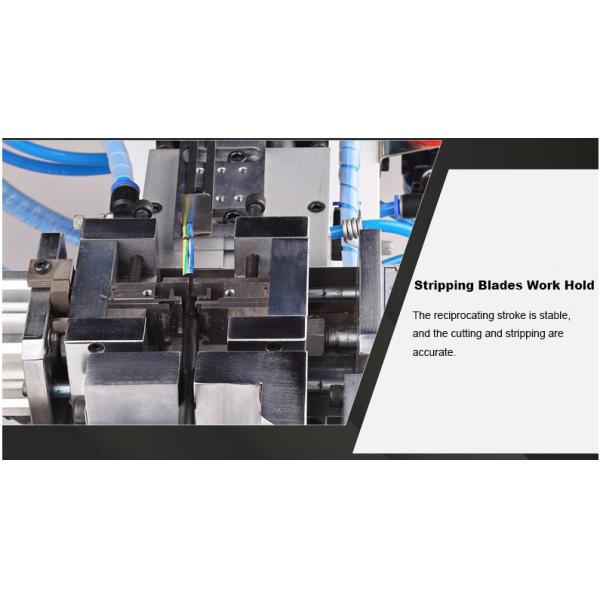

7 Stable sliding seat design, unique sliding seat design ensures more stable stroke and more precise cutting and stripping.

8 The foot pedal is easy to operate. Improved the traditional computer wire stripping method with feet and hands, and evolved into a front clamp back method, which saves energy and improves efficiency.

Technical Parameter:

Model	CX-F100
Stroke	100mm
External Stripping length	8-100mm
Internal cores stripping length	2-12mm
Voltage	110v/220V 60Hz
Air pressure	0.4-0.8Mpa
Weight	45kg
Dimension(mm)	L 400mm* W220mm* H550mm
